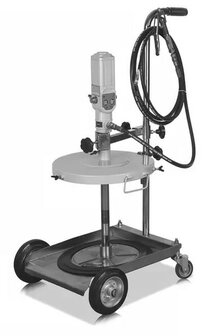

Mobile grease distribution unit 20-60L

Mobile grease distribution unit 20-60L
Mobile grease distribution unit.
Suitable for :
Drums of 60 liters.
Medium high viscosity grease
Contents :
Grease pump
Robust trolley on 2 fixed wheels and 2 swivel wheels
Drum lid and follower plate diameter 260-300 mm
4 meter grease hose
Grease gun and Z-connector
Optional :
If you require a larger type of follower plate and barrel lid, these can be ordered separately:
Diameter 300-330 mm : Follower plate 724563030 | Drum cover 724563018
Diameter 335-360 mm : Follower plate 724563031 | drum cover 891600408
Diameter 360-400 mm : Follower plate 724563032 | Drum lid 724563019
Diameter 540-580 mm : Follower plate 724563033 | Drum cap 891600409
For drums l 20-60
For drum diameter mm 260-300
Drum lid diameter mm 310
Diameter follower plate mm 310
Delivery tube length m 4
Diameter delivery hose inch 1/4
Pressure ratio 50:1
Max pressure oil bar 400
Output g/min 600-800
Length of suction tube mm 480
Diameter suction tube mm 32
Compressed air bar 6-8
Compressed air connection (quick release coupling) inch 1/4
Grease outlet BSP 12''
Weight kg 20.80
Dimensions (l x b x h) mm 485x525 x970
