Beam clamp 2 tons

Beam clamp 2 tons Clamp for lifting steel beams, structures and other objects. Suitable for use in combination with 2T electric and manual chain hoists. Characteristics: High capacity 2 tons...

Item number

: T2g-TV 74669

€ 63,75 *

€ 51,43 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

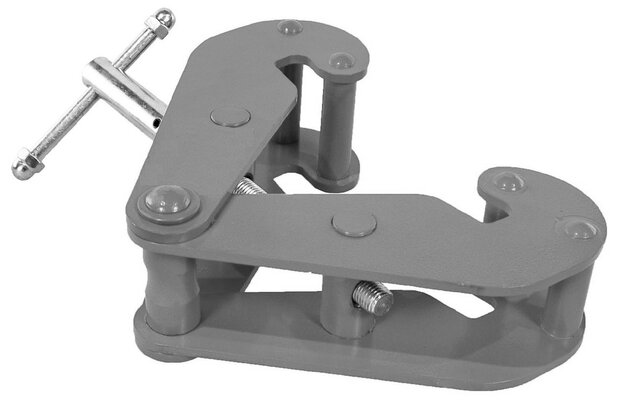

Beam clamp 2 tons
Clamp for lifting steel beams, structures and other objects.
Suitable for use in combination with 2T electric and manual chain hoists.
Characteristics:
High capacity 2 tons
Large clamping range 75-220 mm, adjustable with spindle
For profiles IPE, INP, HEA
Low height, little loss of space
Easy installation
Optional hoists:
Electric chain hoist 3x400V 2 tons 6 meters
Manual chain hoist 2 tons 2.5 meters
Manual chain hoist 2 tons 6 meters
Optional taps:
Gantry crane 2 tons
Nominal capacity    t    2
Clamping range    mm    75-220

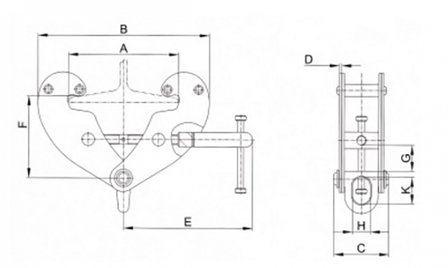

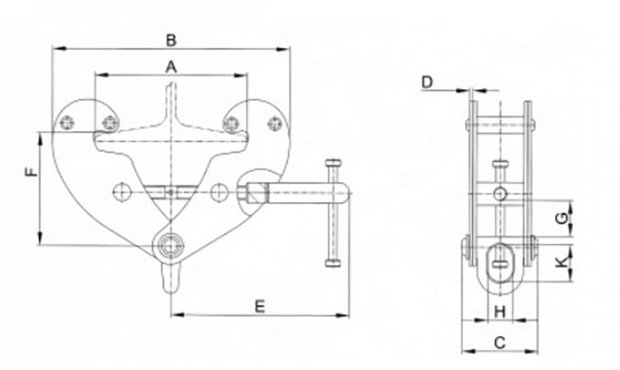

Dimensions
A max.    mm    240
B min.    mm    192
B max.    mm    367
Slot depth    mm    102
D    mm    6
E    mm    218
F min.    mm    103
F max.    mm    155
G    mm    20
H    mm    30
K    mm    45
Weight    kg    5.00
Dimensions (l x b x h)    mm    200x150x100
