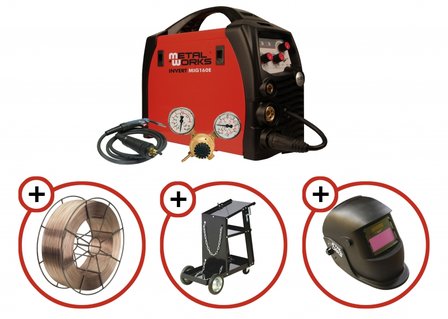

Welding set consisting of the welding MIG160E, the welding helmet PROTECT413, the welding carriage LKA700 and a coil wire RM70.

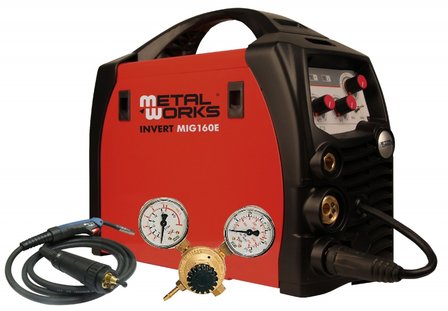

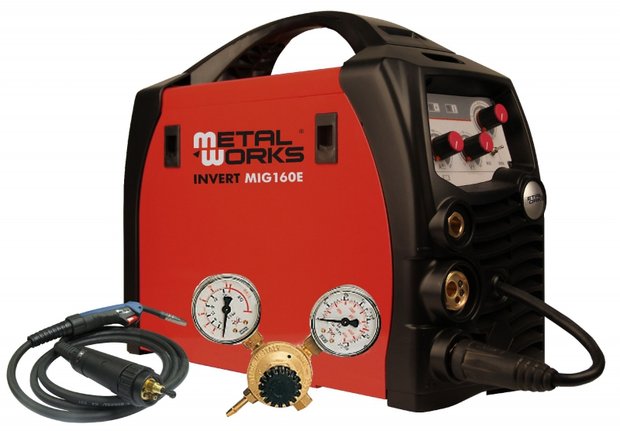

MIG160E
Portable welding inverter for MIG / MAG welding (gas) and FLUX welding (without gas).
Also suitable for welding electrode (MMA) with optional kit.
Welding current 160 Ampere.
Multifunctional machine: save time and money when switching between MIG / MAG, MMA and FLUX welding.
Welding in MIG / MAG / FLUX:
Suitable for MIG welding steel, stainless steel, stainless steel or aluminum
Polarity + or - in wire thicknesses 0,6-0,8-0,9 mm
Stable arc with low spatter, weld and pure as a result
Adjustable parameters: welding current (A) Welding voltage (V), wire throughput speed (m / min.), Down slope and burn-back
MMA welding:
MMA welding ø 4mm (rutile, basic, ...) with optional kit
Stable arc: Hot Start for optimal boot without splashing, and arc force for maintaining the arc during contact with the molten bath
Modern, reliable IGBT inverter module with simple and fast operation.
features:
With VRD function for increased user safety against electric shock
High ergonomics while working: lightweight, compact, recessed controls, low noise operation and with non-slip handle and shoulder strap
Automatic compensation of voltage differences on the net to + - 15%
Corrosion- and impact-resistant housing made of sheet steel / plastic
Optional electrode holder for MMA welding available
With reduced electromagnetic influence on equipment in the area (computers, electronics, ...)
Thermal protection against overloading
CE and EMC conforming
Suitable for:
IP21 suited for use on construction sites
Including torch 3 m with Euro connector, 3 m earth cable 16mm² and gasontspanner with double pressure gauge.
Adapter for Dutch gas cylinders (sold separately ref.830432160)

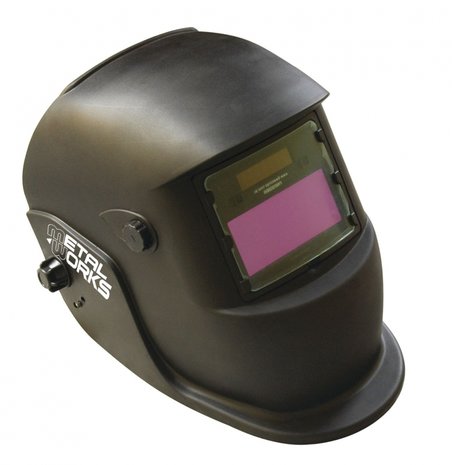

PROTECT413
Automatic welding helmet for MIG and electrode welding.
Benefits:
Complete protection of the eyes and neck radiation and sparks during welding.
Unbreakable and bendable nylon hood.
Comfortable headband.
Gelanzende lacquered finish for easy cleaning.
features:
Viewing window of 90x35mm.
High filter class 1/1 / 1/2 of the tape ensures minimal harmful radiation and a maximum brightness of the viewing window.
1 arrangement on the outside of the cap: DIN 9-13.
Power source: solar + replaceable button cells.
Battery life up to 5000h.
Two sensors for the detection of arc.

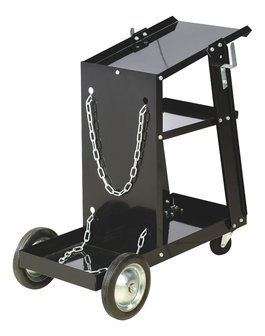

LKA700
Welding carriage. High model.
features:
steel construction
Tilted top for easy operation
Two shelves below: space for torches or welding shield
Bottle holder with two chains
Maximum load capacity: 50 kg.
Two casters at the front.
Large fixed wheels at the back.

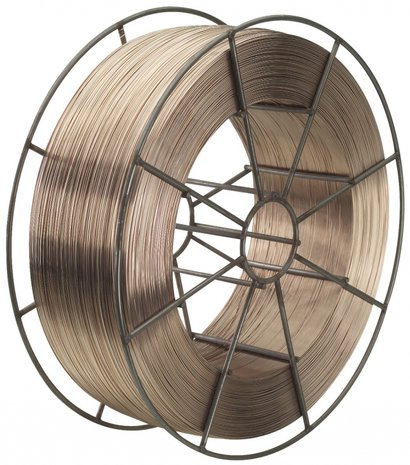

RM70
With copper-coated silicon / manganese alloy welding wire.
Suitable for:
MIG welding of non-alloyed steel and sandblasted types.
features:
Produced with the most modern machines and with the greatest care for quality in order to guarantee an optimum welding process.
According to the following standards EN 440 G3Si1 and AWS A5.18 ER 70 S-6.
Maximum elongation Re 420 N / mm².
Maximum towing capacity Rm 520 N / mm². Welding current: DC +.
Voltage 230 V +/- 15%
Duty Imax A @ 160% @ 20%
Extension A 10 ~ 160
Capacity 1.6 ~ 4.0 mm electrodes
Power consumption 60% / max kW 7,1
Open circuit voltage V 53
Bobbin maximum kg / mm 5/200
Power factor cos fi 0,7
Protection IP 21S
Capacity steel welding wire 0.6-0.9 mm
Capacity stainless steel welding wire 0.6-0.9 mm
Capacity aluminum welding wire 0.6-0.9 mm
Insulation class F
Type of welding, MIG-MAG FLUX
Weight 20.00 kg
Dimensions (L x W x H) mm 1x1x1
