Injector Extractor Tool Kit

Injector Extractor Tool Kit for assembly and removal of diesel injectors various adaptors make the kit suitable for most diesel injectors includes also the following components: 3 different...

Item number

: T2g-AK 8676

€ 348,38 *

€ 223,85 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

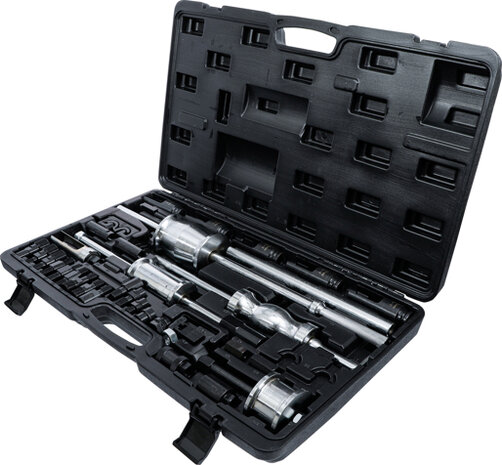

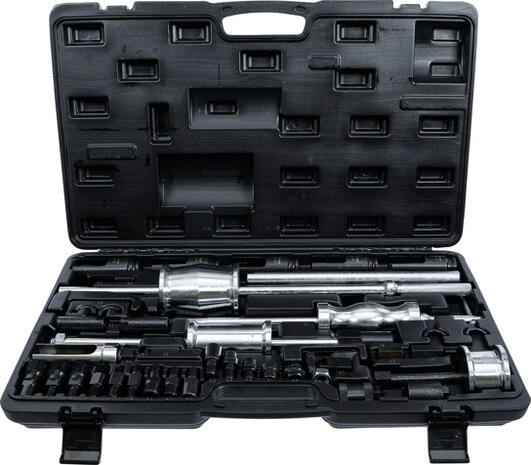

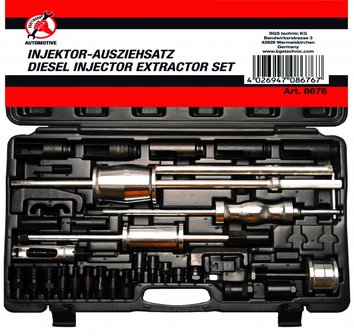

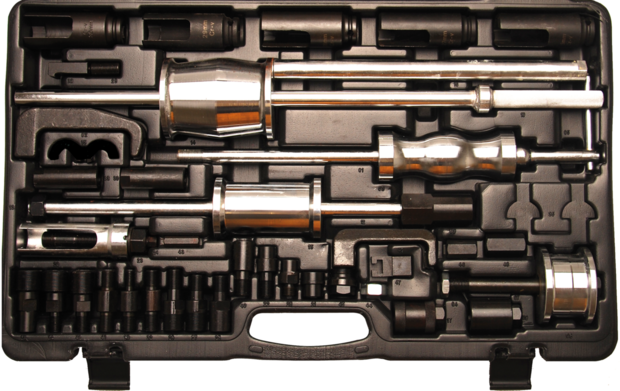

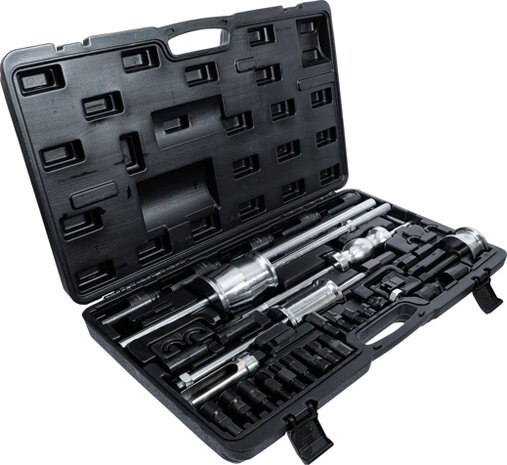

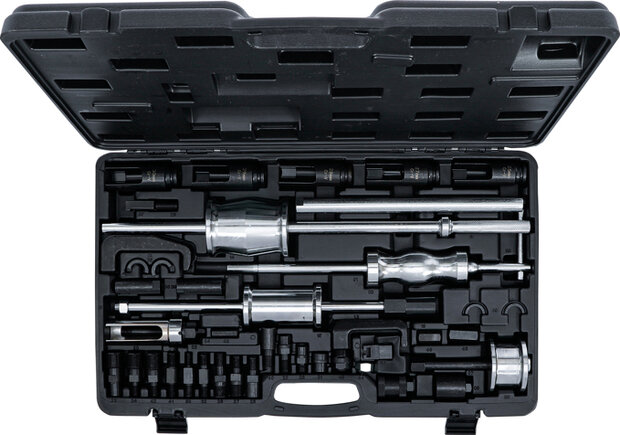

Injector Extractor Tool Kit
for assembly and removal of diesel injectors
various adaptors make the kit suitable for most diesel injectors
includes also the following components:
3 different slide hammers
1.6 kg, length: 160 mm
2.7 kg, length: 460 mm
5.1 kg, length: 600 mm
pulling claws with fork opening:
13.7 x 18 mm, length: 105 mm
12.7 x 19 mm, length: 130 mm
slotted hexagon sockets, length: 100 mm, 12.5 mm (1/2“) drive: 25 - 27 - 28 - 29 - 30 mm
injector extractor, sleeve design with shells: external Ø 35 mm, internal Ø 29 mm
spindle with M17 x 1.0 external screw thread
pulling adaptor with external screw thread M27 x 1.0 (3 pcs.) and M25 x 1.0
pulling adaptor with internal thread M27 x 1.0 (3 pcs.)
sliding hammer adaptor for inner, outer and claw extractor
Technical data
Gross weight 20602 g
