Name: Welder MIG-MAG -TIG 200 Amp
Brand: DECA
Price: 1082.95 EUR
Availability: InStock

Customers reviews

Products

Welder MIG-MAG -TIG 200 Amp

Welder MIG-MAG -TIG 200 Amp Description: Manual wire feed welding ( 2-Stap) Protects against overloading Equipped with Euro connection 4 Welding programs Technical data: Power supply ( Volt...

Item number

: T2g-Deca MIGA 220

€ 1.357,49 *

€ 1.082,95 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

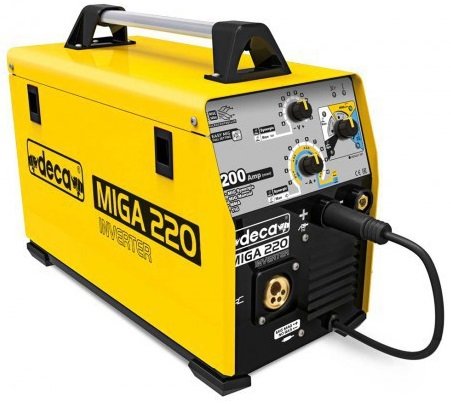

Welder MIG-MAG -TIG 200 Amp
Description:
Manual wire feed welding ( 2-Stap)
Protects against overloading
Equipped with Euro connection

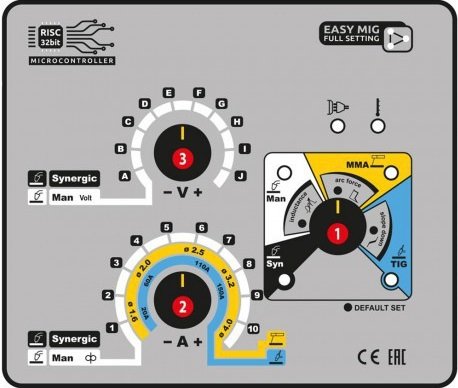

4 Welding programs
Technical data:
Power supply ( Volt 50-60HZ ) 1 Ph x 230
Fuse ( AMP ): 20A
Weight: 10Kg
Dimensions ( L x W x H ): 452 x 220 x 345mmL
Welding range:
MIG / No Gas: 10 - 200A
MMA: 10 - 160A
TIG: 10 - 200A
Work cycle:
MIG / No Gas: (180A - 25% ) - (100A - 60%)
MMA: (150A - 25%) - (100A - 60%)
TIG: (180A - 25%) - (100A - 60%)
Zero load voltage ( Volt ) : 86V
Coil: 100 - 200mm
Wire MIG MAN/SYN:
Steel: diameter 0.6 - 0.8 - 0.9 - 1.0mm
Stainless steel: diameter 0.8 - 1.0mm
Aluminum MG wire: diameter 0.8 - 1.0 - 1.2mm
Aluminum Si wire: diameter 0.8 - 1.0 - 1.2mm
CuSi 3 wire: diameter 0.8 - 1.0mm
CuSi 8 wire: diameter 0.8 - 1.0mm
Shielded wire: diameter 0.8 - 0.9 - 1.0 - 1.2mm
Electrodes:
Power supply ( Volt 50-60HZ ) 1 Ph x 230
Installation power: 5KW
Fuse (AMP): 20A

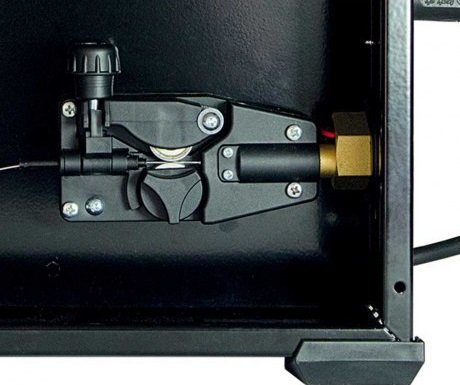

2-step wire feeding
Euro clutch
Cable: 25mm²
Rutile: diameter 1.6 - 4.0mm
Basic welding electrodes: diameter 2.0 - 4.0mm
TIG torch electrode: diameter 0.5 - 2.4mm
