Engine Timing Tool Set Fiat 2.3 JTD & 3.0 JTD

WT 2092 Engine Timing Tool Set Fiat 2.3 JTD & 3.0 JTD Weber Tools
An Engine Timing Locking Tool Set for Fiat Ducato and Iveco Daily 2.3 JTD and 3.0 JTD.
This kit includes the latest Crankshaft Timing Pin required on engines produced from 2006-2008.
The 2.3 JTD twin camshaft Common Rail diesel engine is belt driven between crankshaft and inlet camshaft but utilises a chain to connect both camshafts. The high pressure fuel pump does not require timing.
Follow all the manufacturers’ specified procedures in preparation to remove the worn or damaged timing belt.

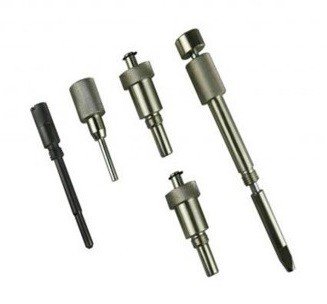

Content:
Camshaft Timing Pins (2)
Crankshaft Timing Pin (2002-2005)
Crankshaft Timing Pin (since 2006)
Camshaft Sprocket Alignment Pin
Models:
Fiat Ducato (2002-2011)
Iveco Daily (2003-2010)
Iveco EcoDaily (2009-2011)
Citroën Jumper III (2006-2012)
Peugeot Boxer III (2006-2012)
Engine Codes:
2.3 JTD: F1AE0481A, F1AE0481B, F1AE0481C, F1AE0418D, F1AE0481F, F1AE0481FA, F1AE0481G, F1AE0481H, F1AE0481HA, F1AE0481N, F1AE0481UA, F1AE0481VA
3.0 JTD: F1CE0481A, F1CE0481B, F1CE0481D, F1CE0481F, F1CE0481H, F1CE3481M
3.0 HDi: F30DTE, F1CE0481D, F1CE3481DM, F1CE3481N
