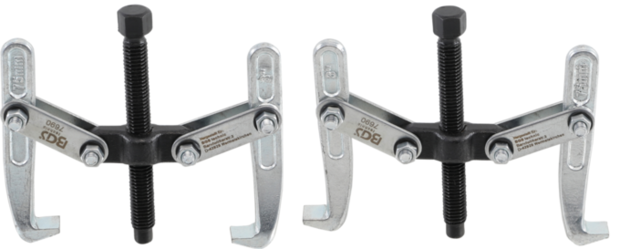

External / internal 2-Arm Puller

External / internal 2-Arm Puller suitable as inside and outside puller forged with ball tip 65-100mm 75-115mm 76-165mm 150-210mm 210-300mm...

Item number

: T2g-AB 7690

€ 12,92 *

€ 11,63 *

7690 Choose*: *

Quantity:

Order

Wishlist

Ask us your question

External / internal 2-Arm Puller
suitable as inside and outside puller
forged
with ball tip

	65-100mm	75-115mm	76-165mm	150-210mm	210-300mm	225-310mm
Clamping depth	75mm	115mm	150mm	225mm	275mm	400mm
Hooked footh	7.5mm	9.5mm	11mm	15mm	19mm	25mm
Hook length	18mm	22mm	22.5mm	33mm	40mm	48.5mm
Min. clamping width	65mm	75mm	76mm	150mm	210mm	225mm
Spindle length	90mm	115mm	138mm	215mm	275mm	280mm
Hex drive size	12mm	14mm	17mm	19mm	24mm	24mm
Max. clamping width	100mm	115mm	165mm	210mm	300mm	310mm
Hook foot thickness at the top	3.5mm	5mm	6mm	6.5mm	9mm	12mm
Gross weight	225g	480g	792g	1980g	4360g	5650g
