Inverter lasapparaat mig-mag-flux

Inverter lasapparaat mig-mag-flux

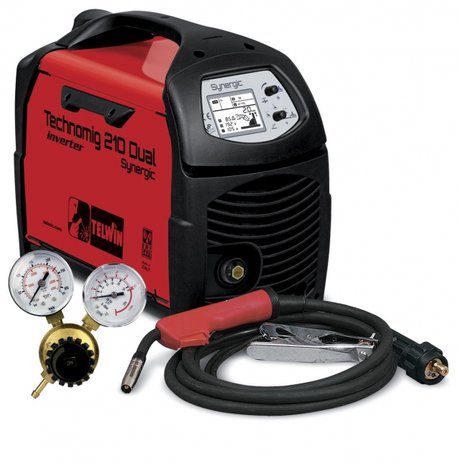

MIG / MAG inverter 200A with synergy.

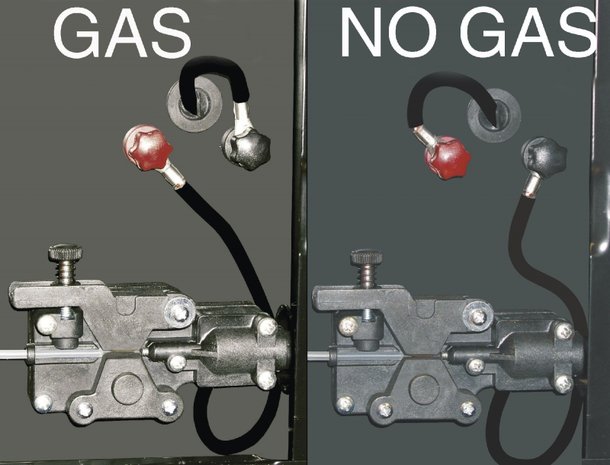

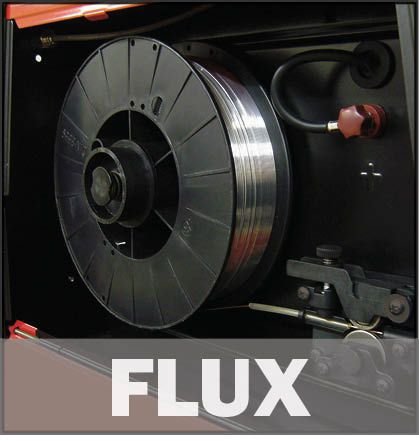

Semi-automatic for MIG-MAG synergy welding, FLUX (without gas) and brazing-brazing.

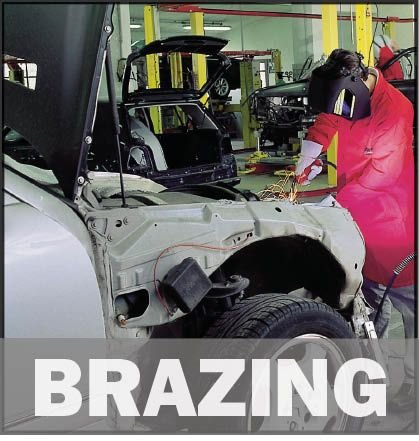

Versatile welding machine with wide field of application for welding steel, aluminum, stainless steel and brazing - brazing of galvanized steel, copper, zinc, ...
Characteristics:

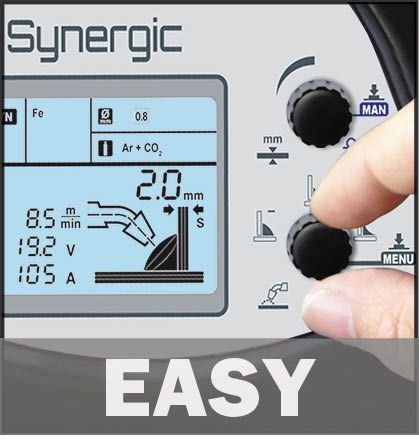

Digital display with quick and easy synergic adjustment of the correct welding parameters with the ONE TOUCH LCD technology
Euroconnector welding torch makes it possible to change torch and material quickly
17 synergic lascurves in memory

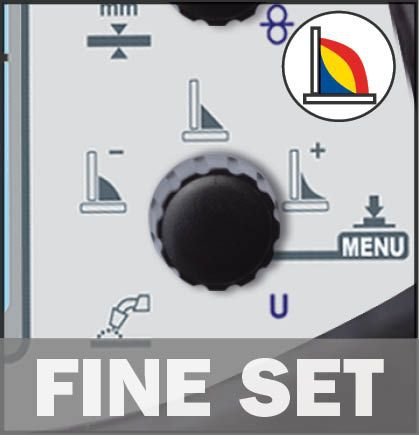

Manual selection of material thickness, wire thickness and gas type give an optimal synergic choice of welding current and voltage. Welding current, wire speed and weld shape easily manually adjustable depending on the welder's preferences
Adjustable parameters: welding current, wire thickness, wire speed, reactance, wire acceleration, burn-back, post gaz and selection 2 or 4-stroke
Very compact and light device
Thermal protection and protection against overvoltage and undervoltage (max. + - 15%)
Supplied with welding torch 3m, welding kit for steel and gas release.
Voltage V 230
Operating time (current @ 60%) A 105
Duty cycle Imax A @% 180/20
Control range A 20-200
Power consumption 60% / maximum kW 2.5 / 5
Current absorbed 60% / maximum A 15/30
Neutral voltage V 62
Force factor cos fi 0.7
Protection class IP IP23
Bobbin maximum kg / mm 5/200
Capacity steel welding wire mm 0.6-1
Capacity stainless steel welding wire mm 0.8
Capacity alu welding wire mm 0.8-1
Capacity filled welding wire mm 0.8-1.2
Braiding wire mm 0.8
Suitable for steel Do not own the property
Suitable for stainless steel Do not own the property
Suitable for alu Do not own the property
Suitable for welding without gas Does not have the property
Suitable for breading Do not own the property
Mobile Does not own the property
Welding type MIG-MAG-FLUX
Weight kg 12.50
Dimensions (l x w x h) mm 800x450x570
