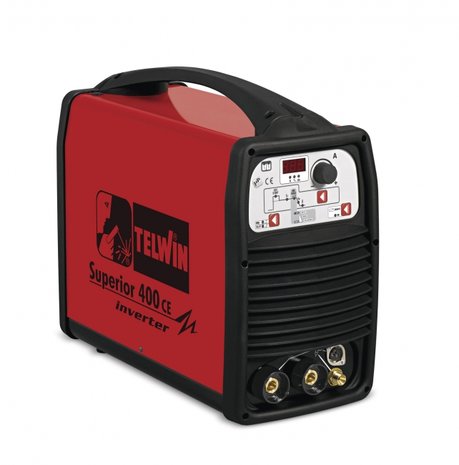

Professional, inverter welding machine with cooling fans for MMA electrode and LIFT TIG welding in DC.
Benefits:
Control by microprocessor
9 memory positions
gaz station
Low weight and size
Very high stability of the welding current, also at voltage fluctuations.
Provide for remote control.
thermal protection
Motor-Generator (+/- 15%).
Easy welding:

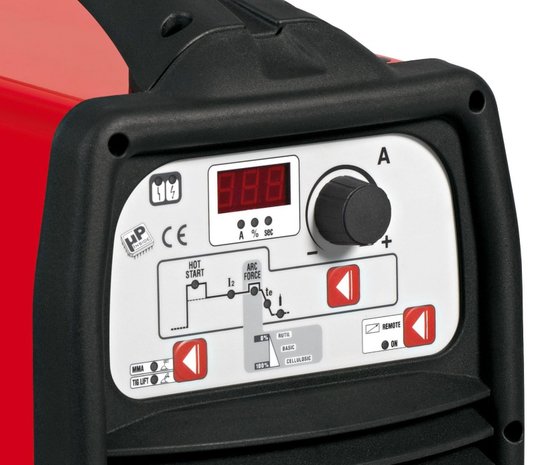

Controlling the arc force and hot start as a function of the electrode used.
Anti-stick prevents the electrode sticking at low welding current.
Overload protection, overvoltage and undervoltage
Suitable for:
Welding with coated electrodes including cellulosic electrodes, base electrodes, rutile, aluminum, stainless steel and cast iron.
LIFT DC TIG welding possible with optional kit.

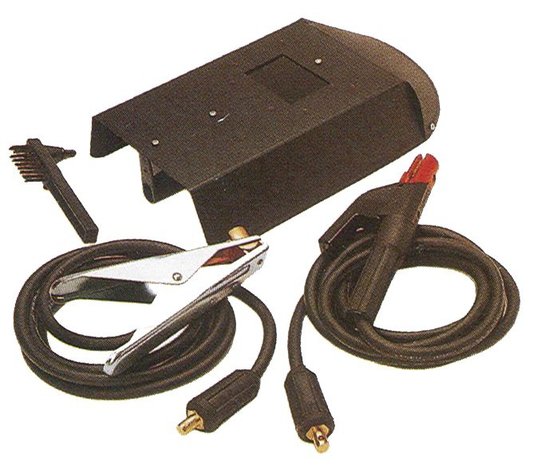

Supplied with welding accessories.
Voltage 400 V 3ph
Extension A 10-350
Power consumption 60% / max kW 7 / 11.5
Consumed current 60% / maximum A 11/18
Open circuit voltage V 70
Power factor cos fi 0,9
Protection class IP 23
Rutile electrodes from 1.6 to 6.0 mm
Duty cycle (power @ 60%) A 230
Maximum duty cycle (EN60974-1, at 40 °) A 330 @ 35%
Basic electrodes from 1.6 to 6.0 mm
Electrodes for stainless steel and cast iron 1.6 to 6.0 mm
Efficiency eta 0.90
Insulation class F
Trolley not Own the property
Weight 24.00 kg
Dimensions (L x W x H) mm 530x240x450
