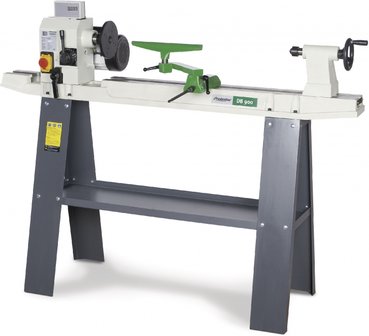

Woodworking lathe 306x900 mm

Woodworking lathe 306x900 mm
Description
Torsion-resistant grey cast iron engine bed provides for high smoothness of running and accuracy
Tailstock and spindle stock also made of stable grey cast iron
Wide, easy-to-adjust tool rest
Tailstock with quick-action lever and handwheel
Tailstock (stroke 50 mm) including follow lathe centre as standard
Tailstock sleeve with hole to process long workpieces

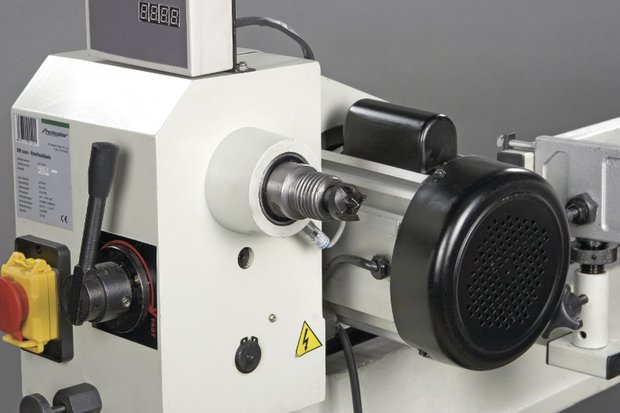

Variable speed regulation from 500-2000 min-1 with digital speed display
The required speed can be adjusted rapidly and easily over a lever at the operator's side
The headstock can be turned by 180°

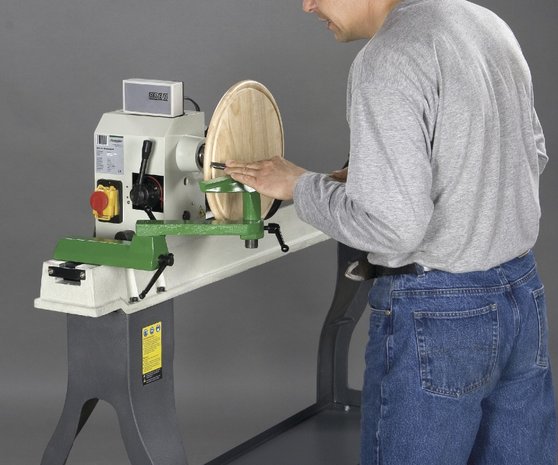

Perfect for turning large diameters
For any turning of workpieces in crossbar operation which are larger than the gauge for bore holes of the bench you can tilt the headstock
The bed elongation together with the repluggable manualtool rests allow maximum flexibility
Lockable Emergency-Stop-Button
Voltage V 230
Center height mm 153
Distance between centers mm 900
Tailstock MK 2
Maximum turning diameter mm 306
Thread type on spindle M 33x3.5
Speed rpm 500-2000

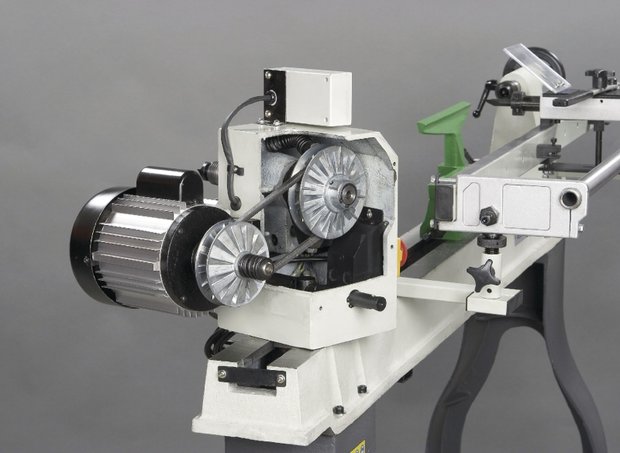

Gears 10 + vario
Power motor kW 0.55
Weight kg 85,00
Dimensions (b x d x h) mm 1.380x330x370
