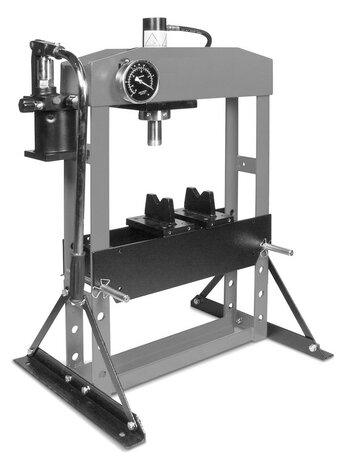

Hydraulic table press 15 Ton manual operation

Hydraulic table press 15 Ton manual operation
Hydraulic manual press 15 Ton with mobile cylinder
Advantages:
Compact table model
Manual operation via lever allows for precise work
Laterally movable cylinder allows for pressing closer to the edge of the frame. Handy for side pressing of large workpieces
Reliable pump mechanism with double speed
Supplied with 2 press blocks (V-blocks)
Optional punch set
Capacity and dimensions:
Capacity: 15 tons
Cylinder vertical travel: 160 mm
Cylinder horizontal travel: 169 mm (mobile cylinder)
Work table distance to cylinder head: min. 157 mm - max. 457 mm
Bed width / space between legs: 500 mm
Features:
The manual pump is operated by the lever, and this allows for precise and slow work, which is useful for precise jobs such as replacing bushings or roller bearings. The base frame, on which all forces are exerted during pressing, is fully welded from 1 sturdy frame, which benefits the strength and lifespan of the press. We do not use bolts or screws to assemble the press.
The work table is supported by 2 heavy-duty locking pins with safety clips, with the work table resting on the pins. This makes it easier to adjust the table in height without the pins getting stuck.
Pump with overload valve
Removable cylinder head (internal diameter of the mounting: 25 mm). This makes it possible to connect the optional punch set or other press forms and folding knives to the head (art. 754758311)
Supplied with:

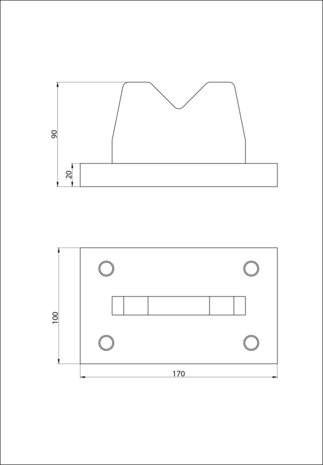

Set of V-blocks for straightening or pressing shafts, bars and tubes. Dimensions of a V-block: length 170 mm, width 100 mm, height 90 mm
Pressure gauge with indication of the pressing force
Pre-filled with hydraulic oil
Easy assembly: the press is delivered in 1 piece. Only the 2 side support legs are assembled on site
Options:
Set of 8 round punches from 10 to 30 mm, for machining bushings, seals, roller bearings, etc. (art. 754758311) Supplied with adapter.
Hydraulic oil (art. 790030046). Oil tank with quantity: 750 ml.
Extensive range of pusher bits and guide bushings for pushing keyways from 2 to 25 mm. (e.g. 10 mm: art. 790008653). Contact our product specialists for a correct selection of these accessories. Alternative presses:
Hydraulic press 20 Ton with hand and foot control (art. 757170154)
Hydraulic press 30 Ton with hand and foot control (art. 757170155)
Hydraulic press 50 Ton with hand and foot control (art. 757170156)
Hydraulic pneumatic press 20 Ton (art. 757170220)
Hydraulic pneumatic press 30 Ton (art. 757170300)
Hydraulic pneumatic press 50 Ton (art. 757170520)
Type of press    manual control
Cylinder    160
Cylinder stroke G  mm    160
Number of speeds    2
Capacity    t    15
Mobile cylinder    yes

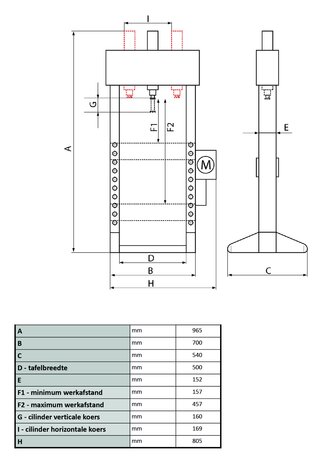

Dimensions
A  mm    965
Bmm    700 C  mm    540 D  mm    500 Cylinder diameter  mm    48 E  mm    152 F  mm    370 F min.mm    157 F max.mm    457 H  mm    805 I  mm    169 L1  mm    465 L2  mm    165
Weight  kg    73.00
Dimensions (l x bx h)  mm    7 00x540 x965
