Hydraulic press hydropneumatic 75 tons

Hydraulic press hydropneumatic 75 tons

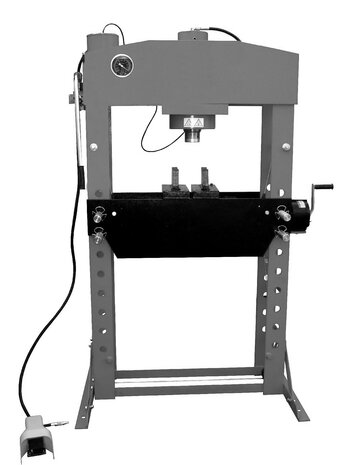

Hydraulic press 75 tons with hydropneumatic control.
Characteristics:
Capacity: 75 tons
Cylinder with stroke of 250mm
The press is operated with a double pump function: the hydropneumatic pump is controlled by compressed air via the foot pedal, and provides power and speed while working. No manpower is required.
The manual pump is operated by the lever, and allows precise and slow work, which is useful for precise jobs such as replacing bushes or roller bearings.
The cylinder can be manually shifted in width with a handle, so that pressing can also be done closer to the edge of the frame. This can be useful when pressing on the side of larger workpieces.
The basic frame, on which all forces are exerted during pressing, is completely welded in 1 piece, which improves the strength and lifespan of the press.
The work table is adjustable in height with a hand winch, and the distance to the cylinder head is min. 170mm and max. 884mm
The work table has a distance to the floor of min. 411mm and max. 1125mm.
The work table is supported by 4 heavy duty locking pins with safety clips, with the work table resting on the bottom 2 pins. This makes it easier to adjust the height of the table without the pins getting stuck.
Pump with overload valve
Removable cylinder head (internal mounting diameter: 25 mm). This makes it possible to connect the optional punch set or other pressing shapes and folding knives to the head.
Delivered with:
Manometer with indication of the pressing force
Pneumatic foot pedal for compressed air
Set of 2 V-blocks for pressing shafts, bars and tubes
The external compressor for supplying the compressed air is available as an option
Options:
Mobile compressor 2.4 hp 230V type Airclassic 351/50/10 with 50 liter barrel (art. 712034035)
Mobile compressor 3 hp 230V type Airclassic 451/100/10 with 100 liter barrel (art. 712034046)
Punch set with 8 round push dies 10-30mm, for machining bushes, seals, roller bearings, etc. (art. 754758311)
Steel protective grille, as protection when pressing workpieces that fly away (art. 757170225)
Hydraulic oil (art. 790030046). Required quantity: 4500ml.
Extensive range of push broaches and guide bushes for pushing keyways from 2 to 25mm. (e.g.: 10mm: art. 790008653). Contact our product specialists for the correct selection of these accessories.
Type of press        hydropneumatic operation
Cylinder        mobile
Head of cylinder G    mm    250
Required air pressure    bar    8
Capacity    t    75
Rate    mm    250
Down speed under pressure    mm/min    25
Speed under pressure    mm/min    94
Down speed without pressure    mm/min    43
Speed at without pressure    mm/min    43

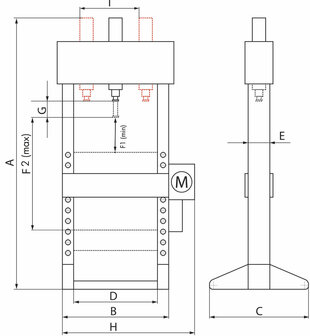

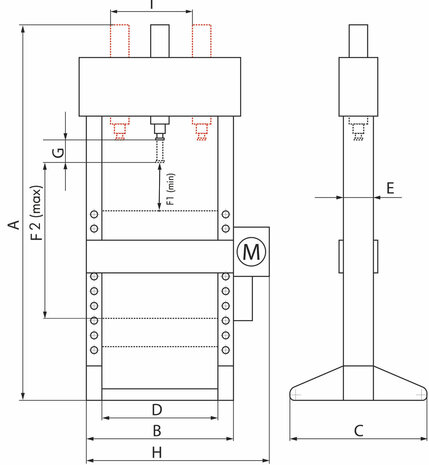

Dimensions
A    mm    1896
B    mm    1140
D    mm    800
E    mm    250
F    mm    170-884
G    mm    250
Slot depth    mm    800
H    mm    260
I    mm    498
Weight    kg    451.00
Dimensions (l x b x h)    mm    1,146x800x1,925
