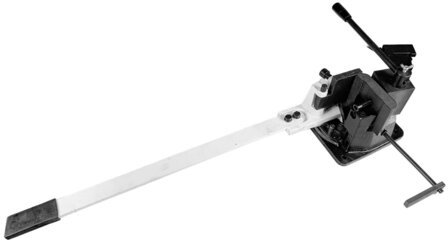

Bending machine profiles up to 120°

Bending machine profiles up to 120°
Universal folding device for folding metal profiles.
Assets:
Solid cast iron construction
When placed one above the other, multiple profiles can be folded at the same time
Compact installation on workbench due to removable handle
With a set of folding blocks (for different bend diameters and profiles)
Bend angle up to 120° with fine adjustment
Suitable for:
All profiles (flat, round, ...) and materials (stainless steel, iron, rebar...)
Every workshop, service vehicle
Delivered with:
Angle indication, various folding blocks, stop for repetitive work and quick-release clamp
Type of folds        profile
Operation        manual
Maximum pleat angle    °    120
Soft metals (alu)        Have the property
Inox        Own the property
Rebar        Own the property
Steel        Owns the property
For workbench        Own the property
Cold bending flat steel    mm    100x5
Cold bending round steel    mm    18
Cold bending square steel    mm    16x16
Cold bending angle profile steel    mm    60x8
Hot bending flat steel    mm    100x15
Hot bending around steel    mm    22
Hot bending square steel    mm    22x22
Hot bending angle profile steel    mm    100x12
Weight    kg    31.00
Dimensions (l x b x h)    mm    390x290x280
