Chain hoist manual 1 ton 6 meters

Chain hoist manual 1 ton 6 meters

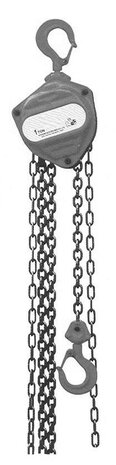

Manual hoist with capacity 1000 kg and chain length 6 meters
With this hoist you can lift/lower via a drive chain that reaches the work floor. The internal gear box makes the operation very light, even at full capacity.
You can use the chain hoist with an optional suspension hook, trolley or lifting accessories.
Capacity:
Lifting capacity: 1 ton
Lifting height: 6 m
Dead height: 400 mm
Drive chain length: 12 m (loop-shaped)
Hook opening (C): 27 mm
Features:
Galvanised and rust-resistant chain
Quality G80 chain, developed for industrial use
Single lifting chain with link thickness 6 mm
2 swivel hooks 360° freely rotatable with safety catch
Options:
Manual trolley 1000 kg
Electric trolley 1000 kg
Beam clamp 1000 kg
Lifting clamp for plates 1000 kg
Lifting magnet 300 kg

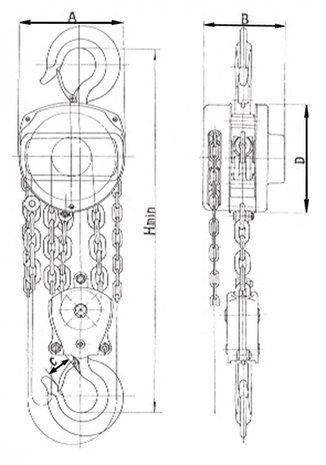

Capacity t    1
Chain length    m    6
H minimum    mm    400
Number of chains    1
A    mm    164
Link chain dia. mm    6
B    mm    124
C    mm    27
D    mm    182
Drive chain length    m    12
Gear ratio    43:1
Weight    kg    16.95
Dimensions (l x b x h)    mm    164x124 x400
