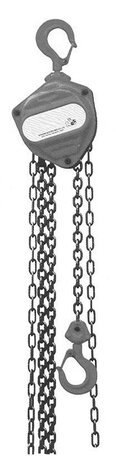

Chain hoist manual 2 tons 2.5 meters

Chain hoist manual 2 tons 2.5 meters
Manual hoist with capacity 2000 kg and chain length 2.5 meters
With this hoist you can lift/lower via a drive chain that reaches the work floor. The internal gear box makes operation very light, even at full capacity.
You can use the chain hoist with an optional suspension hook, trolley or lifting accessories.
Capacity:
Lifting capacity: 2.5 tons
Lifting height 2.5 m
Dead height: 420 mm
Drive chain length: 5 m (loop-shaped)
Hook opening (C): 30 mm
Features:
Galvanized and rust-resistant chain
Quality G80 chain, developed for industrial use
Single lifting chain with link thickness 6 mm
2 swivel hooks 360° freely rotatable with safety catch
Options:
Manual trolley 1000 kg
Electric trolley 1000 kg
Beam clamp 1000 kg
Lifting clamp for plates 1000 kg
Lifting magnet 300 kg

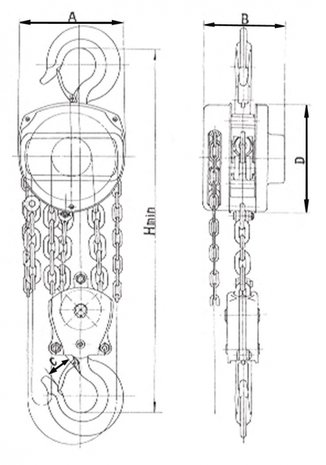

Capacity t    2
Chain length    m    2.5
H minimum    mm    420
Number of chains    2
A    mm    164
Link chain dia. mm    6
B    mm    124
C    mm    30
D    mm    182
Drive chain length    m    5
Gear ratio    85:1
Weight    kg    15.00
Dimensions (l x b x h)    mm    136x148 x368
