Lift bridge hydropneumatic 700 kg

Lift bridge hydropneumatic 700 kg

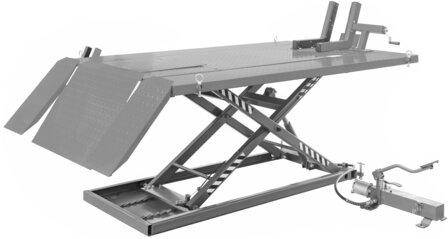

Hydropneumatic scissor lift with capacity 700 kg.
Wide model suitable for motorcycles, quads, lawn mowers, etc.
Characteristics:
Stationary model with capacity 700 kg
Long working surface of 1995 mm
Supplied with an extension set, whereby the working width can be widened to 1218 mm.
Equipped with double pump:
- Hydraulic pump with mechanical foot control
- Pneumatic pump operated via air valve. When connecting the pneumatic pump to the compressor
increases pump speed
With mechanical safety against falling
With manual wheel clamp
Wheel clamp dimensions: 330x340mm, opening 190mm
Dimensions gray base (lxw) 1680 x 720 mm
Options:
Hydraulic oil (art. 790030046)
Installation by our services
Commissioning and inspection by a recognized inspection body
Capacity    kg    700
Loading surface dimensions    mm    1995x1218
Maximum height    mm    825
Minimum height    mm    185
Ramp dimensions    mm    550x1218
Pump dimensions    mm    600x240x380
Required oil    l    1.4
Clamping range of the wheel clamp    mm    55 - 205
Weight    kg    238.00
Dimensions (l x b x h)    mm    2,500x1,218x210
