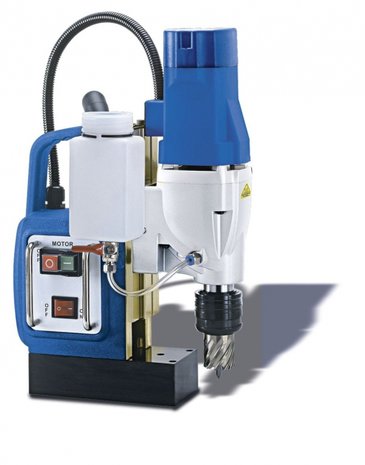

Strong magnetic drill MB502E, 12,36kg

Strong magnetic drill MB502E, 12,36kg

Description MB502 (MB502E upon request)
High-quality magnetic core drilling machines for versatile use. Drilling large diameters economically and rapidly.
For core drills with 19 mm Weldon shaft
Stable drilling guidance thanks to long and especially deep-mounted spindle sleeve guidance
Device is earthed and double isolated, hence ideal for building sites
High magnetic holding force
Highest-quality design
The coolant is routed through the drill
With quick-release chuck for conveniently replacing the core drills
Conversion from core to full drilling in just a few actions
Safe and reliable function
Special features MB 502
Two speeds
With 2000 Watt motor
Max. magnetic holding force of 32,000 N
Features:
Two speeds
With quick-release chuck
With 2,000 Watt motor
Max. magnetic holding force of 32,000 N
Multiple speed ranges adjustable
Quick-release chuck
Conversion from core to full drilling with just a few actions
Voltage V 230
Infeed Manual
Maximum diameter core drills mm 50
Maximum drilling depth core drills mm 50
Weldon fitting mm 19
Spindle seat M8
Maximum diameter full drills mm 13
Maximum drilling depth full drills mm 140
Speed rpm 180-270
Power motor kW 1,1
Dimensions megnetic base (l x w) mm 180x90
Magnet capacity N 17000
Number of speeds 2
Weight kg 12,36
Dimensions (b x d x h) mm 330x125x476
